Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH

Product Categories

Xiamen Lynsa Intelligent Technology Co.,Ltd.

Contact Now

Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH

Name: Residential On Off Grid Solar Energy Storage System Samsung Li Ion Battery 32 KWH
Brand: Motepower
Price: 1 USD

China Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH wholesale

Brand Name : Motepower

Model Number : MP-3215BDL

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 500pcs per month

Delivery Time : 10-30days (Depends on the quantity)

Packaging Details : Carton, Packing size:595×355×690mm

Battery Capacity : 3.2KWh

Battery Type : Samsung Li-ion Battery

Rated Output Power : 1500W

Peak Output : 2250W

Output Voltage : 100/110/120V OR 220/230/240V

Output Frequency : 50Hz/60Hz

UPS Function : YES

Solar Charing Model : MPPT

Product Dimension : 510×270×600mm

Packing Dimension : 595×355×690mm

Net Weight : 49Kg

Gross Weight : 57Kg

Contact Now

3.2 KWH On/off Grid Solar Energy Storage System Samsung Li-ion Battery with Universal Wheel for Home Using

Product Description

1. When sun power is strong, solar electricity run the load first, the extra electricity will store into our ESS at the same time.

2. When sun power is not enough for loads, the stored electricity will replenish first.

3. When no power generation from the solar, use the stored electricity to run the load.

4. Grid electricity is the last choice when no solar power no power storage.

Features:

High Safety and Reliable Performance

Best Storage Capacity for whole family using

Easy connection, Convenient and Higher Efficiency

UPS power supply function

Lower input, 10 years Long life

Porduct Parameter

Battery Capacity: 3.2KWh
Battery Type: Samsung Li-ion Battery
Output
Rated Output Power: 1500W
Peak Output: 2250W
Output Voltage: 100/110/120V OR 220/230/240V
Output Frequency: 50Hz/60Hz
UPS Function: YES
Off Grid
Max Efficiency: 92%(>70% Load)
AC Charge
Input Voltage: 88～264Vac
Input Frequency: 50/60Hz±5Hz
Max Charge Power: 600W
PV Charge
Max Input Power: 1200W
Start-up Voltage: 75Vdc
MPPT Amount: 2
MPPT Input Voltage: 75~140 Vdc
Max Input Voltage: 150 Vdc
MPPT Efficiency: 99.5%
Max Efficiency: >96%
Solar Charing Model: MPPT
Product Dimension: 510×270×600mm
Packing Dimension: 595×355×690mm
Net Weight: 49Kg
Gross Weight: 57Kg

Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH

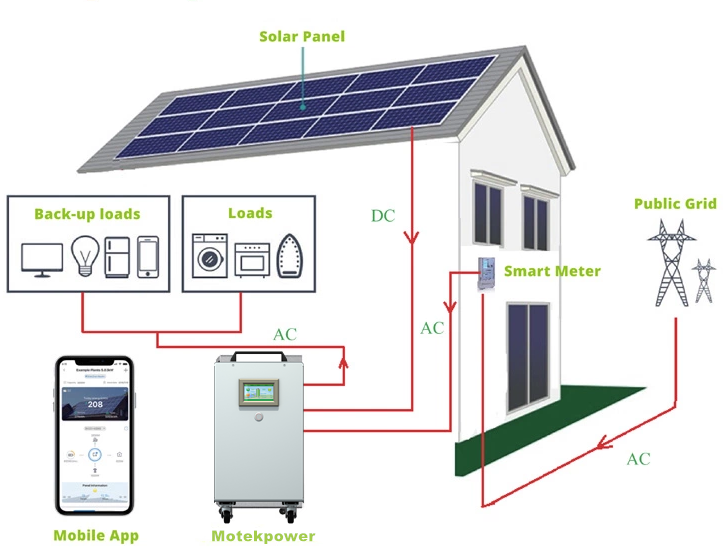

There are three modes to meet the user's needs: PV mode, UPS mode, peak-avoiding mode. The system will swith to its most appropriate working mode automatically according to the user's actual power consumpetion. Details of these three working modes are as below:

PV Mode: Electricity from solar PV system will power the load first and then redundant electricity will charge the battery.
UPS Mode: Systems get electricity from grid and then charging battery. When main power supply fails, systems offers electricity automatically for load.
Peak-avoiding Mode: This mode is suitable for areas with different electricity prices for different pweiod per day. This mode allows user to store electricity into the system when electricity is cheaper and use those stored energy when electricity is expensive.

Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH

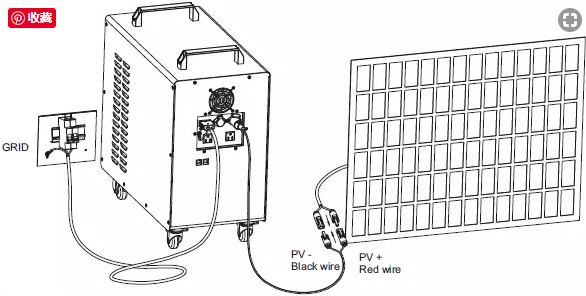

How to make the connection between solar panel, ESS and Grid power.

Residential On / Off Grid Solar Energy Storage System Samsung Li Ion Battery 3.2 KWH

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: FOB.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. If your order model is in stock, then it will be very soon.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
